What Is Stitch Crack Repair?
Stitch crack repair (also known as wall crack repair or helical bar stitching) is a proven structural repair method used to fix cracked walls.
Stainless steel helical bars are bonded into slots cut across the crack line, tying the brickwork back together and preventing further movement.
Fresh pointing seals the gaps, strengthens the wall and stops water from finding its way into the brickwork or surrounding areas. It’s a key part of wall maintenance that prevents long-term structural problems.
Why Wall Cracks Should Never Be Ignored
A crack in a wall is more than a cosmetic issue – it’s a sign that something has moved. Whether caused by subsidence, thermal expansion, lintel failure or settlement, an untreated crack will continue to widen. Water gets in, frost makes it worse, and what starts as a hairline split can develop into a serious structural problem.
A neglected wall doesn’t just look tired — it can lead to damp penetration, further cracking, brick decay and, in some cases, partial wall failure. These issues often develop slowly and go unnoticed until the repair work becomes far more costly.
Early intervention with a professional stitch crack repair keeps the wall safe, weather-tight and structurally sound. By dealing with cracks early, you protect both the appearance of your property and the long-term health of the brickwork.
Our Wall Crack Repair Services
Helical Bar Stitch Crack Repair
Our primary crack repair method. We cut horizontal slots across the crack, bond in stainless steel helical bars with specialist resin, and repoint the joints to match the existing mortar.
This restores full structural integrity to the wall, prevents further movement and creates a permanent, virtually invisible repair.
Crack Assessment & Survey
Not sure how serious the crack is? We carry out a full assessment of the damage, identify the cause and recommend the most appropriate repair method – whether that’s stitching, repointing or a combination of both.
Brick Replacement & Repointing
Where cracking has caused bricks to spall, blow or become loose, we carefully remove and replace damaged bricks with matching replacements.
We then repoint the surrounding joints to blend the repair seamlessly with the existing wall, ensuring a seamless finish that prevents water from tracking into the wall.
Lime Mortar Crack Repair
Older brick and stone walls often need breathable lime mortar rather than hard modern cement for crack repairs.
We carry out stitch crack repairs using compatible lime-based mortars, matching the colour and profile so your wall keeps its character while staying structurally sound and watertight.
Preventative Repointing
Where cracks are minor and the wall is generally sound, targeted repointing of the affected area can prevent the problem from worsening.
We rake out and repoint the weakened joints, tightening everything up, improving weather resistance and smartening the appearance without the cost of a full stitch repair.

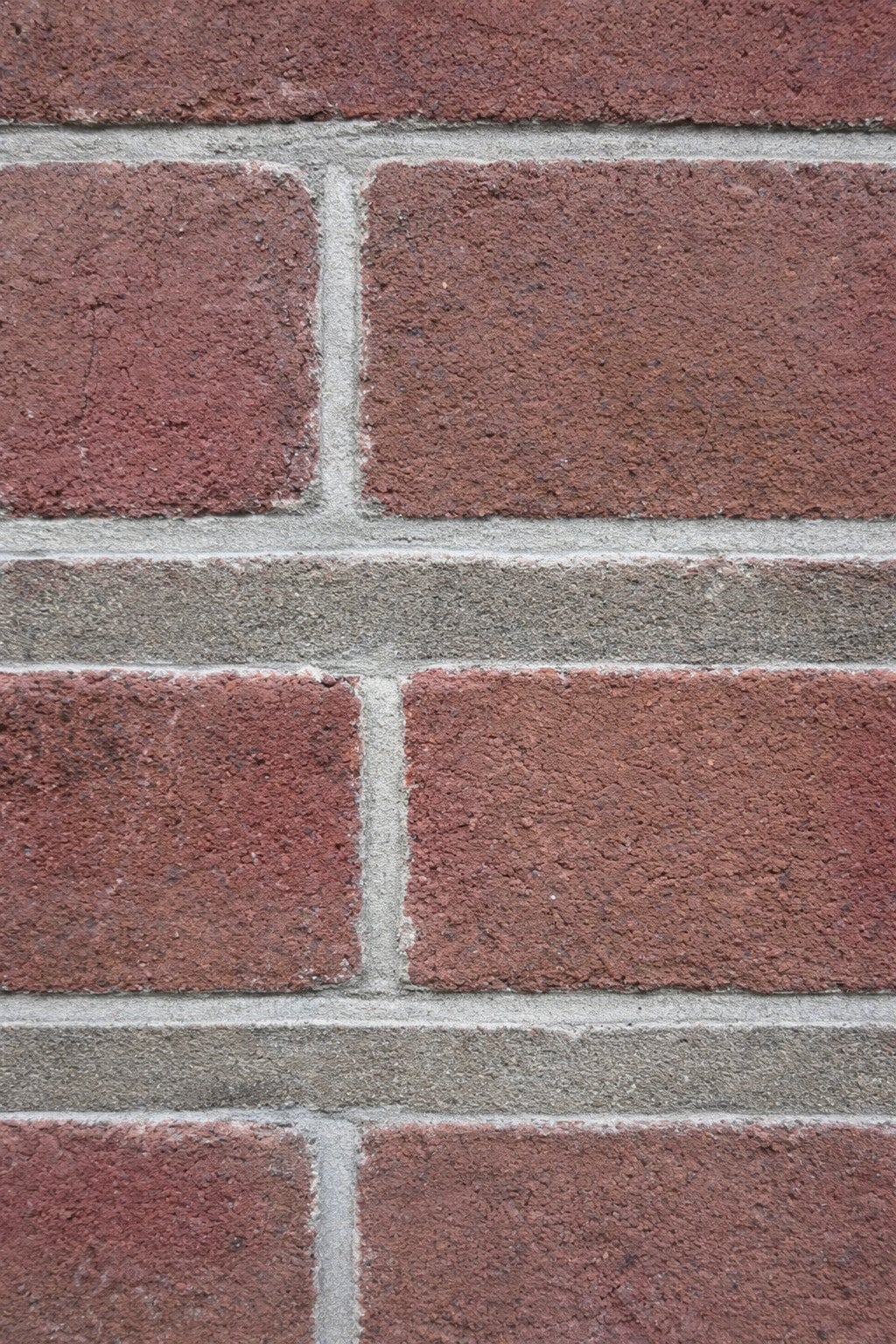

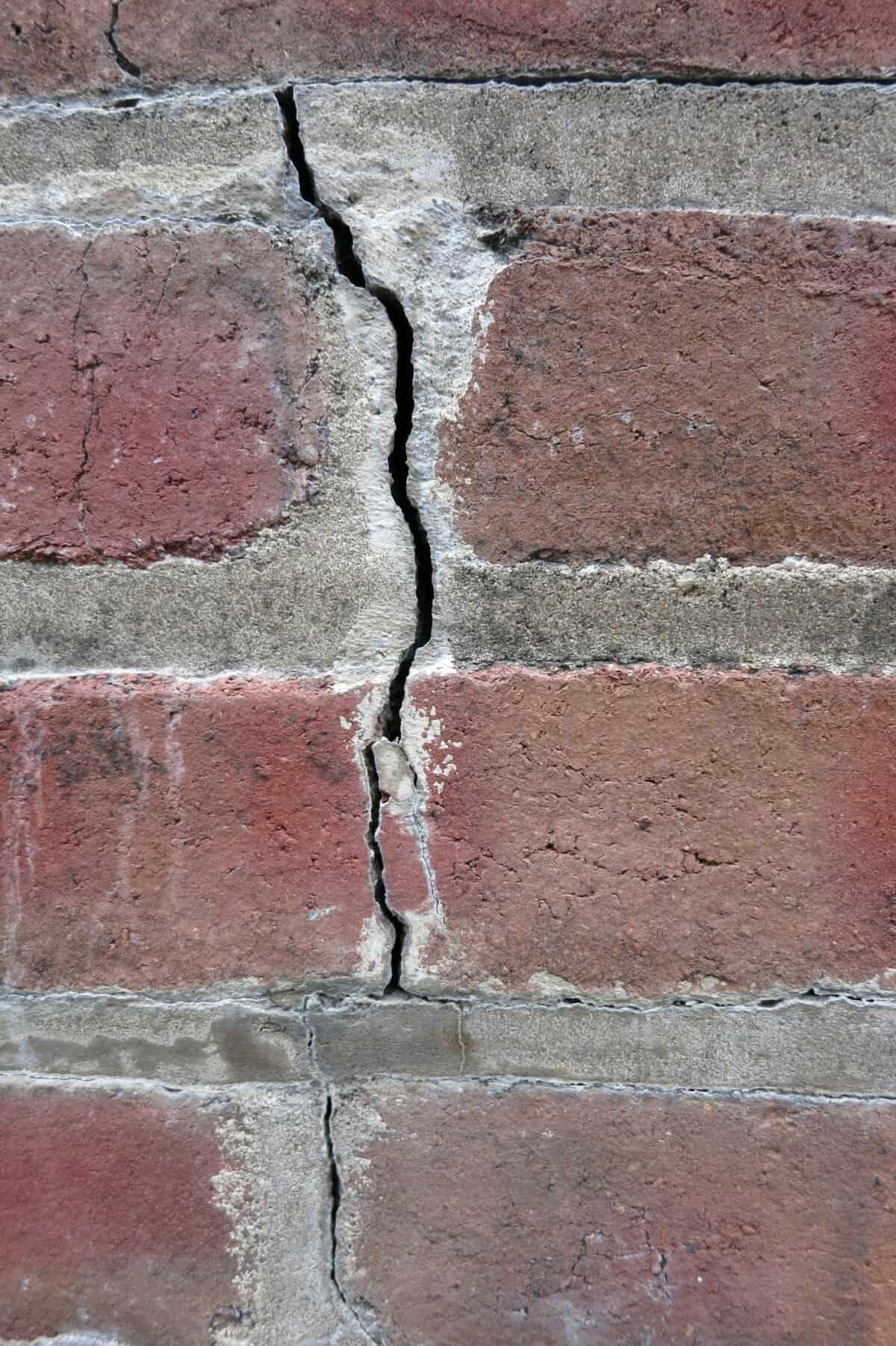

Before And After Wall Crack Repair
Why Repair Wall Cracks Promptly?
Wall cracks expose your property to water ingress, frost damage and ongoing structural movement. Left untreated, even a small crack can lead to serious problems including damp, brick decay and partial wall failure.
At Cheshire Pointing Ltd, we offer a complete range of specialist wall crack repair and repair services to keep your property safe, watertight and compliant.
What can wall crack repair do to keep your home protected for years to come?
Stitch crack repair is one of the most effective ways to stop structural damage before it gets worse. Helical bars bonded across the crack line tie the brickwork back together, prevent further movement and stop water from getting in. Done correctly, it’s a permanent repair that restores full strength to the wall.
At Cheshire Pointing Ltd, we specialise in restoring walls to full strength. Our repair work restores structural integrity, improves the appearance of the brickwork and prevents further damage. With over 22 years of experience across Cheshire, Staffordshire, Wirral and Derbyshire, we know exactly what’s needed to protect both modern walls and older brickwork.
You’re welcome to view our projects page to see how effective repointing is in improving appearance, extending lifespan and keeping homes safe from avoidable damage.
When Does Your Wall Need Crack Repair?
Visible cracks running through brickwork
Cracks that have widened over time
Stepped cracks following mortar joints
Cracks above or below windows and doors
Damp patches appearing near cracks
Gaps opening between wall sections
Cracks on gable end walls
Cracks at corners or junctions
Spalled or blown bricks near cracks
White salts (efflorescence) near cracks
Movement or bulging in the wall
Cracking visible on both sides of the wall
Need More Than A Crack Repair?
If you need more than repointing and you have crumbling brickwork, loose sections or a leaning wall aren’t just ugly – they’re a genuine safety risk and a fast track to leaks and damp.
We carry out full structural assessments and will give you straight advice on whether a stitch repair is enough or more extensive work is needed. Our team can:
- Carry out helical bar stitch crack repairs
- Replace damaged or spalled bricks
- Repoint failing mortar joints
- Advise on underlying causes such as subsidence or lintel failure
All work is carried out safely with proper access, and we leave your walls structurally sound, watertight and looking their best for years to come.
Why Choose Cheshire Pointing Ltd
Read our reviews

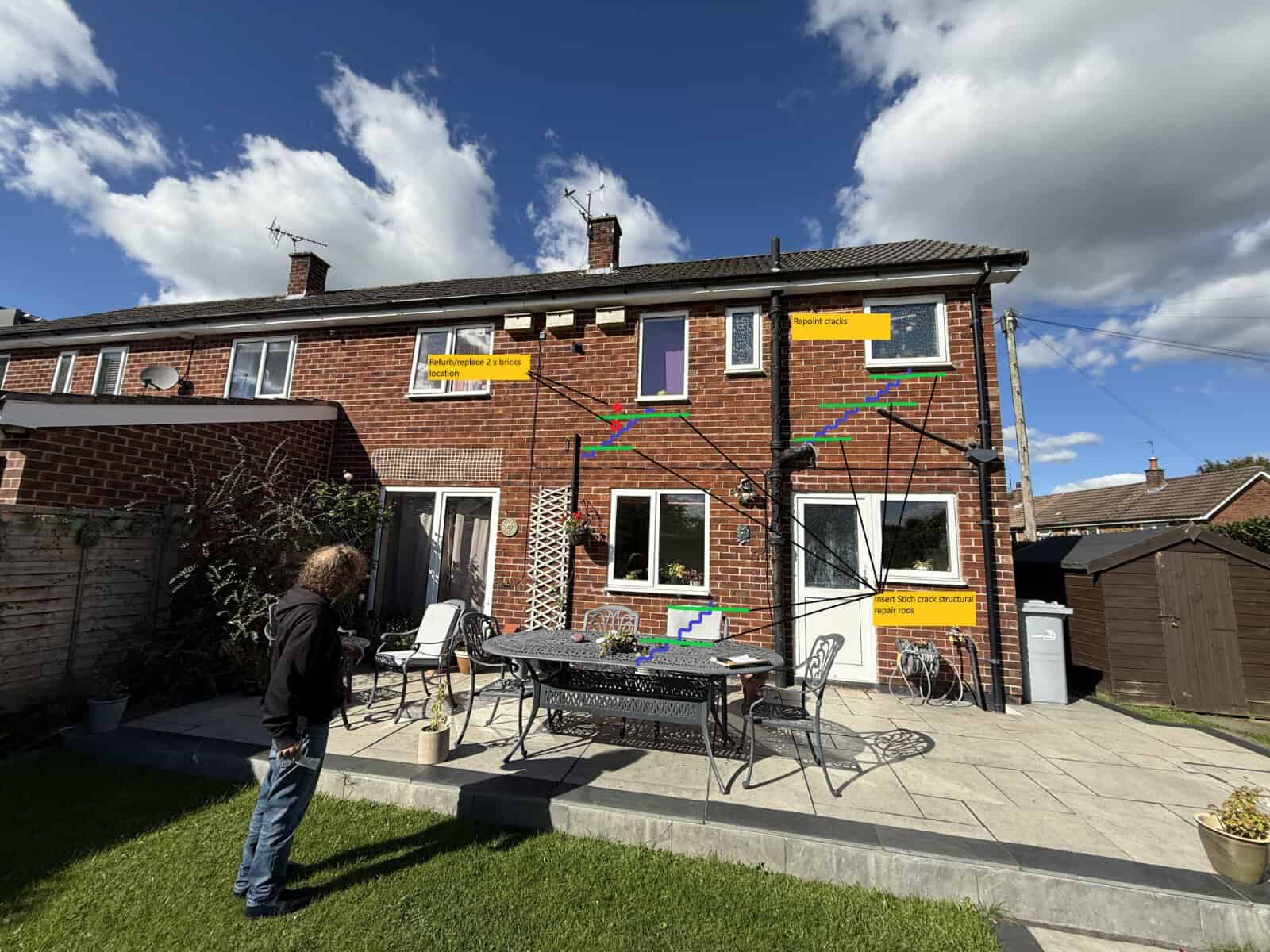

Case Study: Stitch Crack Repairs & Brick Repointing
Our client approached us with concerns about multiple cracks appearing across the rear elevation of their semi-detached property. The cracks were visible in several locations, including stepped cracking following the mortar joints and vertical cracks running through the brickwork. They needed professional assessment and repair to prevent further structural movement and water ingress.
Our Solution

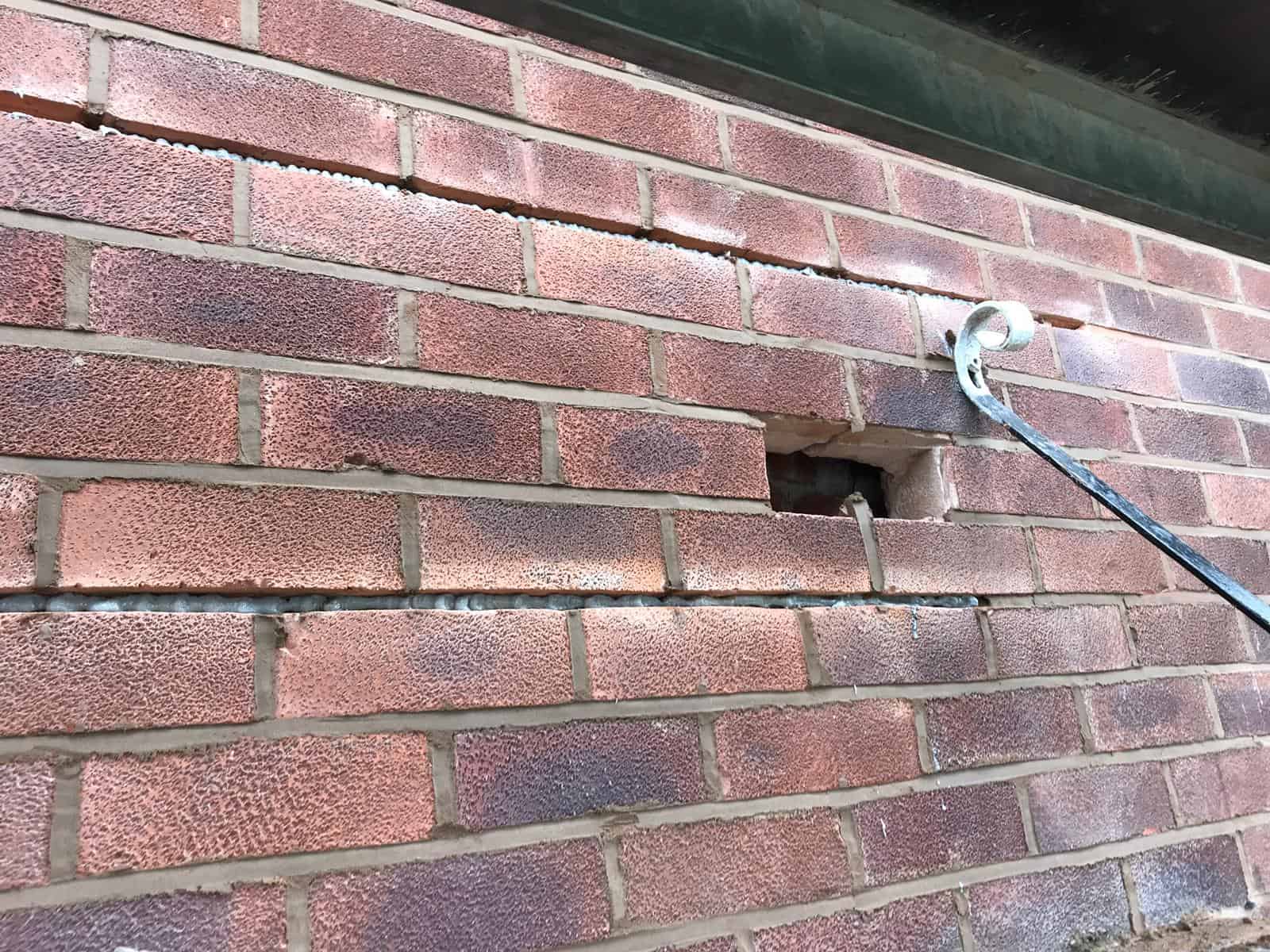

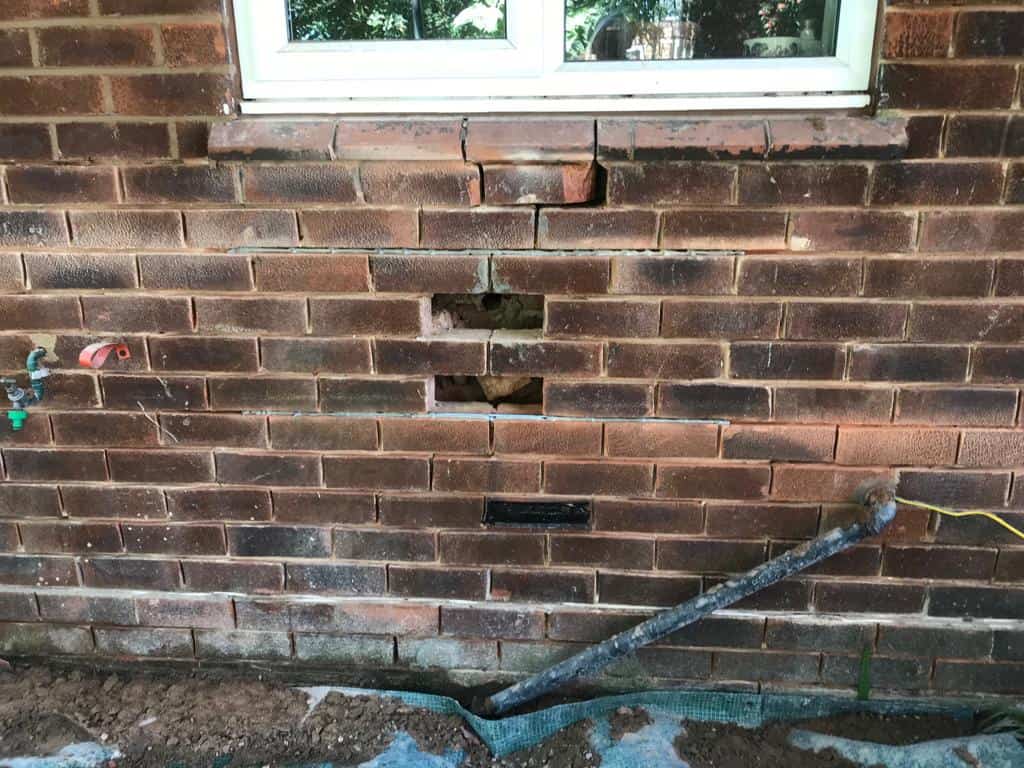

Following a comprehensive survey, our team identified multiple crack locations requiring helical bar stitch crack repairs. We carried out structural repairs to the upper left section of the rear elevation where stepped cracking had developed, a significant vertical crack running through the center of the wall, additional crack locations on the right-hand side of the property, and areas where brickwork had become weakened due to crack movement.
We installed stainless steel helical bar stitch crack structural repair rods at strategic locations across all identified cracks, bonding them with specialist resin to tie the brickwork back together. Following the structural repairs, we repointed all affected areas to match the existing mortar, creating a weathertight seal and uniform appearance.
Services Provided
- Comprehensive structural survey and crack assessment across the entire rear elevation
- Professional advice on helical bar stitch crack repairs for multiple crack locations
- Installation of stainless steel helical bar structural repair rods to prevent further movement
- Replacement of damaged bricks where cracking had caused spalling
- Expert repointing of all repaired areas to match existing brickwork
- Coordination of scaffolding and site access for safe working at height
- Detailed before-and-after photographic documentation
The Result
We installed stainless steel helical bar stitch crack structural repair rods at strategic locations across all identified cracks, bonding them with specialist resin to tie the brickwork back together. Following the structural repairs, we repointed all affected areas to match the existing mortar, creating a weathertight seal and uniform appearance.
